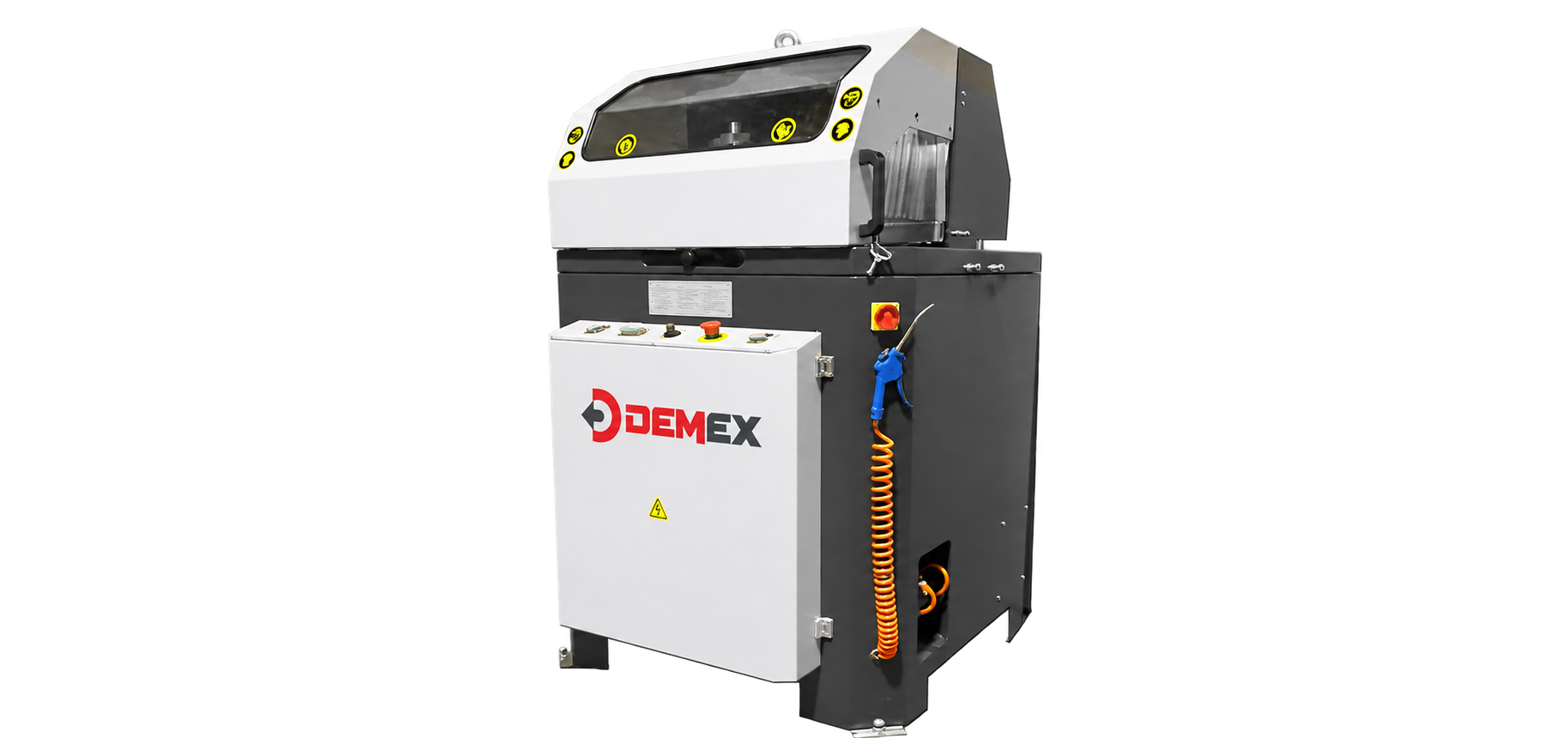

AC 500 — Automatic Upcut Saw Ø 500 mm
- Product Code : AC 500
AC 500 — Automatic Upcut Saw
For straight and angled cutting of aluminium profiles.
| Specification | AC 500 |
|---|---|
| Blade diameter | Ø 500 mm |
| Blade rise height | 200 mm |
| Blade drive | Belt-driven |
| Preset angle stops | 15°, 22.5°, 30°, 45° |
| Standard measuring conveyor | 2 m, right-hand side |
Standard Equipment
- Intermediate-angle table locking and adjustable cutting feed
- Guard with safety switch and two-hand controls
- Two vertical clamps and air gun
Options
- Hydro-check hydraulic feed control
- Spray cooling for aluminium cutting
- Right-hand measuring conveyor, 3–6 m
- Left-hand support conveyor, 3–6 m
- Digital positioning conveyor with automatic slicing for 90° cuts
Request a quotation from DEMEX with your profile dimensions, cutting angles and required lengths.
